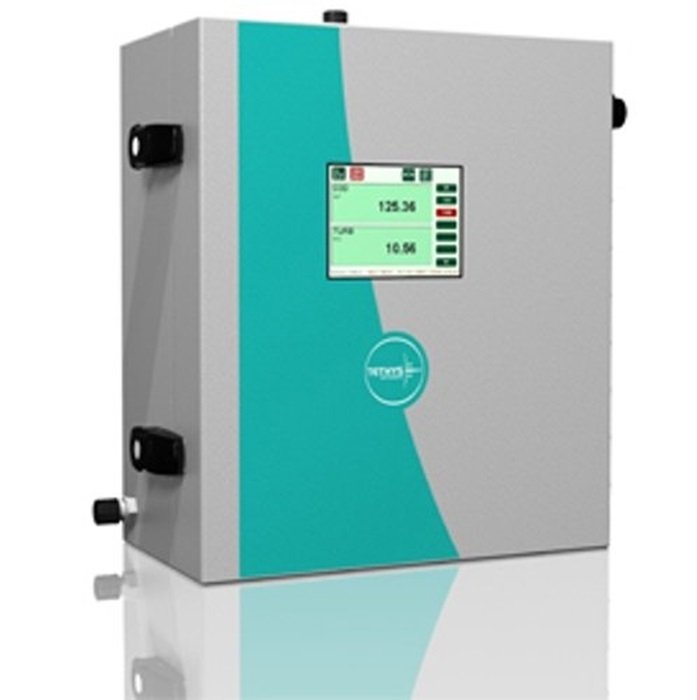

Online Continuous Effluent & Air Monitoring System (OCEMS)
OCEMS is a state-of-the-art automated monitoring solution designed to measure both effluent water quality and air emissions in real time. Using advanced IoT sensors, UV-Vis spectroscopy, and NDIR-based gas analyzers, it provides continuous 24–7 monitoring, remote calibration, and cloud-integrated dashboards for easy access and regulatory compliance. It ensures full adherence to CPCB/SPCB standards while helping industries optimize resources, minimize downtime, and reduce environmental impact.
Real-time multi-parameter monitoring
Regulatory compliance (CPCB / SPCB Approved)
Remote access & mobile dashboards
Automated calibration & alerts
Cost savings through predictive analytics
Ensures operational efficiency & sustainability
Regulatory compliance (CPCB / SPCB Approved)
Remote access & mobile dashboards
Automated calibration & alerts
Cost savings through predictive analytics
Ensures operational efficiency & sustainability
Key Parameters & Features
Water Parameters
- TSS RANGE: 0 – 2000 mg/l
- BOD RANGE: 0 – 2000 mg/l
- COD RANGE: 0 – 5000 mg/l
- PH RANGE: 0-14ph
- TDS RANGE: 0 – 1000 mg/l
Features
- Based on UV-Vis absorption spectroscopy (as per norms)
- Automatic cleaning and auto-calibration
- Measuring cycle time adjustable
- Self-diagnosis & friendly calibration setting
- User-friendly graphical interface
- UV source Xenon Flash Lamp
- Resolution 0.01mg/L
- Highly stable and accurate with a wide measuring range
- 7– LCD color touch panel display
- Reagents free and cost-saving
- Automatic alarm notification of low & high values
Air Parameters
- Product Name: CEMS (Continuous Emission Monitoring System) – TUV Certified, CPCB Approved
- Technology: Sox/So2 - NDIR, TPM/PM/SPM - Opacity Based
- Remote Calibration Facility: Yes
Specifications (Gas Parameters)
- Detection Limit: 0.1 PPM
- Zero drift: –2% FS
- Span drift: –2% FS
- Response < 90s
- Operating Temp Gas: 0-250 –C
- Display: Graphics (320 x 264)
- Response Time: 30 sec at 95% variation
- Power Supply: 110V-230V AC
- Sampling Probe: SS316 with ceramic filter
- Digital Output: RS 485
- Analog Output: 4-20mA
- Air Supply: 1kg/cm–
- Rated flow: 200 L/min for backflow
- Compressor Air: Clean, dry, oil-free
- Accuracy unaffected by water & dust
